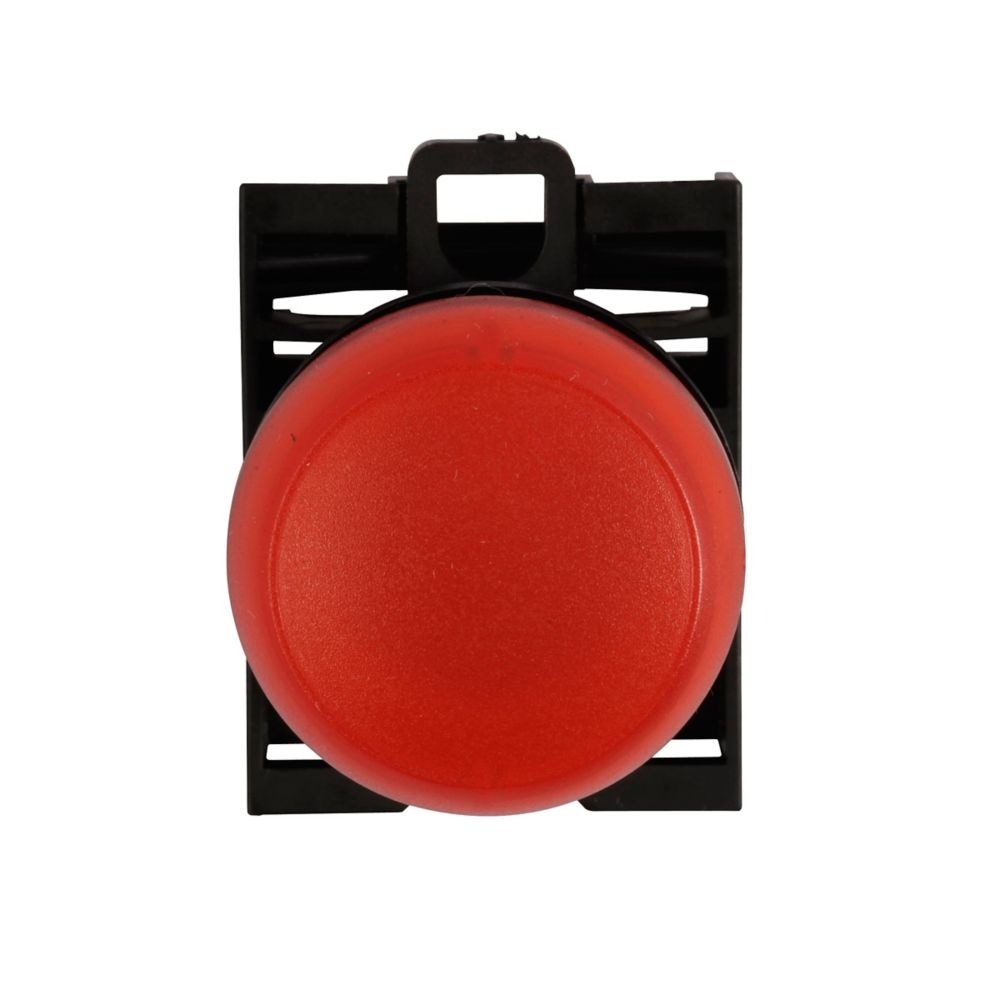

Luz Indicadora Modular 22.5 mm Roja Iluminada IP66 NEMA 4X Eaton 216772 M22-L-R

Luz Indicadora Modular 22.5 mm Roja Iluminada IP66 NEMA 4X Eaton 216772 M22-L-R

Condición: NUEVO SELLADO.

Esta luz indicadora modular de la serie M22 de Eaton presenta un diseño empotrado y una lente de color rojo. Ofrece una vida útil de 100.000 horas de operación y cuenta con un grado de protección IP66 y NEMA 4X. Es resistente a la corrosión y cumple con los requisitos de estabilidad térmica de los gabinetes. Además, es compatible con la conexión SmartWire-DT.

Especificaciones

• Product Name: Eaton Moeller® series M22 indicator light
• Catalog Number: 216772
• Model Code: M22-L-R
• EAN: 4015082167721
• Product Length/Depth: 30 mm
• Product Height: 30 mm
• Product Width: 30 mm
• Product Weight: 0.007 kg
• Compliances: CE Marked
• Type: Indicator lights
• 10.10 Temperature rise: Not applicable.
• 10.11 Short-circuit rating: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance: Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
• 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions: Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances: Meets the product standard's requirements.
• 10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections: Is the panel builder's responsibility.
• 10.8 Connections for external conductors: Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength: Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage: Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material: Is the panel builder's responsibility.
• Fitted with: Front ring
• Pollution degree: 3
• Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
• Connection to SmartWire-DT: Yes With SWD-RMQ connections
• Rated impulse withstand voltage (Uimp): 4000 V AC
• Bezel color: Chrome
• Shock resistance: Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
• Bezel material: Other
• Terminal capacity: 0.5 - 1.5 mm², stranded 0.5 - 1.5 mm², solid
• Lens color: Red
• Design: Flush

Peso informado por el distribuidor: weight 0.009000 kg
